FL-S1220C-RGBW

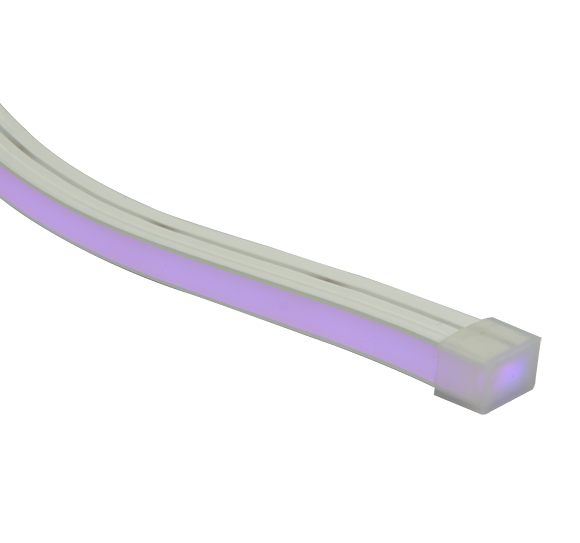

12x20mm RGBW neon flex side bending

FEATURES

  1. Long life 50,000 hours
  2. Safe low voltage (12Vdc or 24Vdc)
  3. Ultra low power consumption, low energy efficiency
  4. Flexible Bending, uniform light distribution,light dot-free
  5. Minimum cutting 50mm for DIY, Minimum bending diameter 60mm
  6. High UV and salt spray corrosion resistant,environment friendly
  7. IP67 with silicon glue process
  8. Full dimmable with a separate lighting dimmer
  9. Suitable for cove, office, ,hotel, retail, architectural lighting etc.
  10. 3 years warranty
  11. CE ROHS UL approval
  • SPECIFICATION

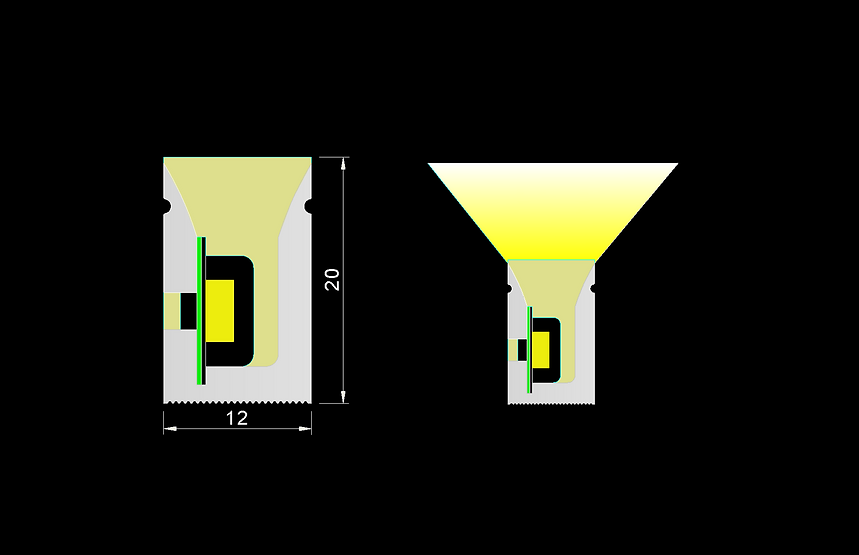

  • DIMENSION
  • DOWNLOAD
  • ACCESSORIES
PART NO.: VOLTAGE LENGTH LED QTY LED TYPE COLOR POWER LUMENF LUX PCB WIDTH CUTTABLE UNIT CRI MAX RUN
V m Pcs/m K W lm mm mm Ra m
FL-S1220C-RGBW 24 5 96 5050 RGBW 15W 100 12X20 62.5 >80 5
FL-S1220-RGBWW 24 5 60 5050 RGBWW 18W 120 12X20 50 >80 5
FL-S1220-RGBI 24 5 96 5050 RGBI 18W 120 12X20 31.5 >80 5
IMAGE PART NO. NAME DESCRIPTION
img200*123 ZF120A-1205000 LED power supply 60W
LED power supply 60W, 12V/5A, 24V2.5A, input voltage 110-240V, Nameplate Output Power 50W
img200*123 ZF120-1208000 LED power supply 96W
LED power supply 96W, 12V/8A, 24V4A, input voltage 110-240V, Nameplate Output Power 50W
