Floor & Waterproof

FL-AF2

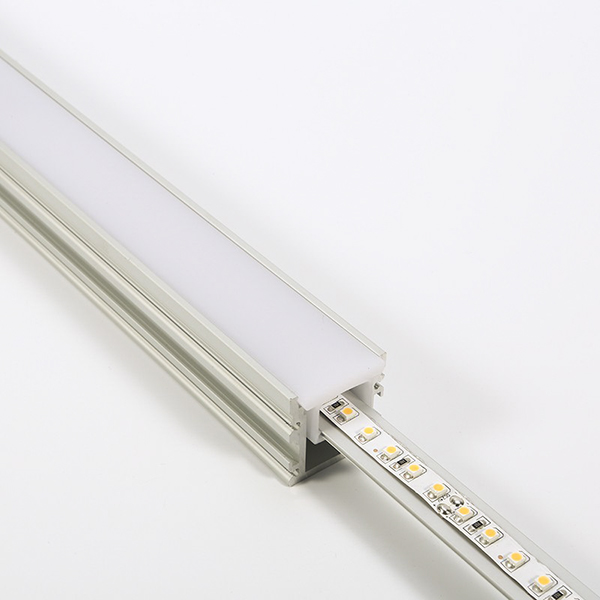

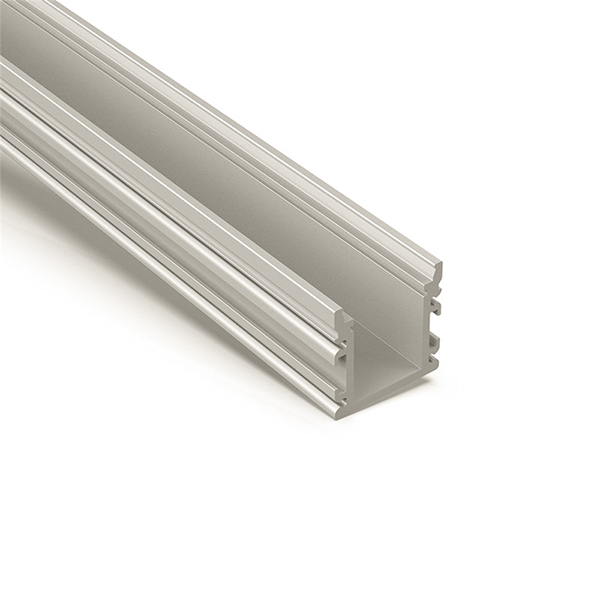

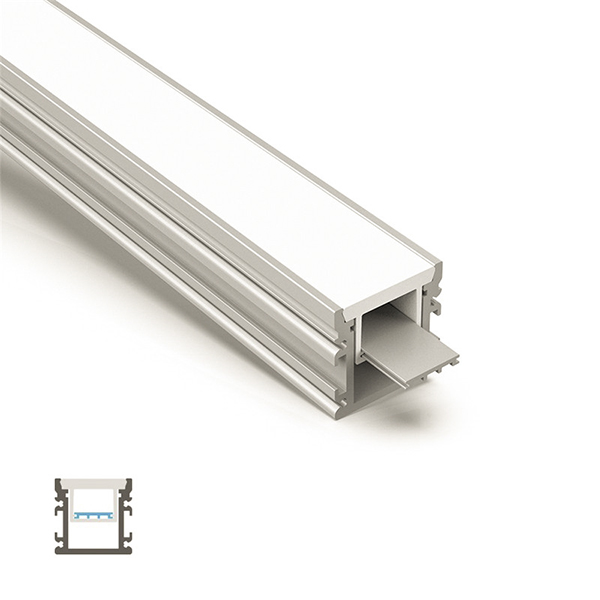

IP67 Aluminum Profile 30.5x30mm

6063-T5 Silver anodized Aluminium
PC or PMMA as cover, Frosted/Milky/Clear are available
Silver/Black/White/Custom
Anodized painting finish

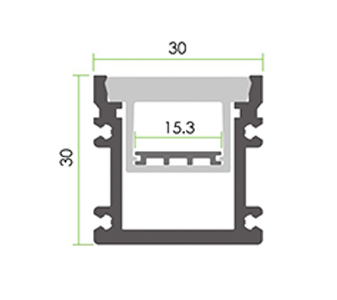

Dimension:W30.5m *H30mm
Suitable for light source width 12mm Max
Standard length 1m or 2m, 4m Max
IP20 indoor use only
Excellent heat dissipation with top-level 6060 aluminum

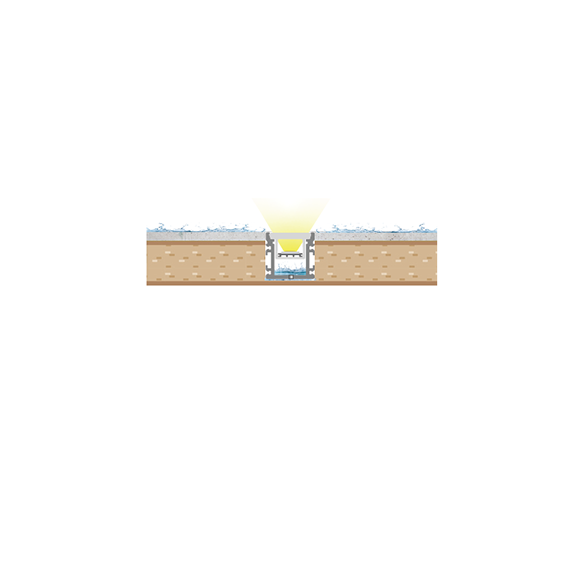

Drive over underground IP67 led profile Used for outdoor for both walks over and drive over. IK10 tested.

PART NO.:	COMPATIBLE WIDTH	COMPATIBLE POWER	WATERPROOF LEVEL	STANDARD UNIT	HOUSING COLOR	COVER COLOR	CABLE OUTPUT	COVER	CONNECTOR	END CAP	MOUNTING CLIP
	mm	W	IP	m				Pcs	Pcs	Pcs	Pcs
FL-AF2	15mm	<19.2	67	1/2	Silve/r/black/white	Frosted/milky/clear	Side	2	0	2	2
FL-AF2	15mm	<19.2	67	1/2	Sliver/black/white	Frosted/milky/clear	Side	2	0	2	2
FL-AF2	15mm	<19.2	67	1/2	Sliver/black/white	Frosted/milky/clear	Side	2	0	2	2
