FL-24FS2835-84-IG

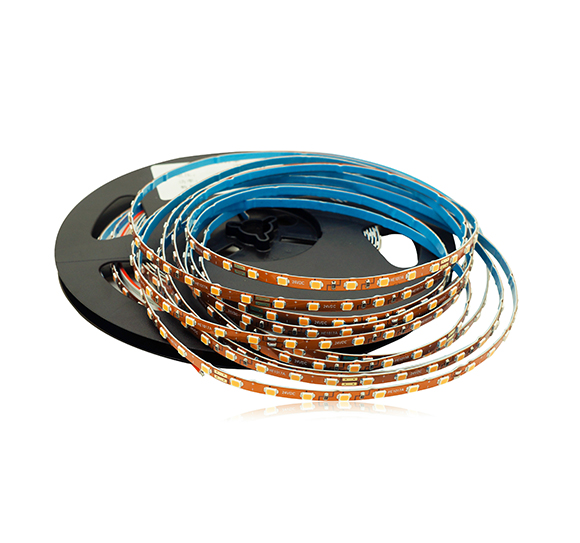

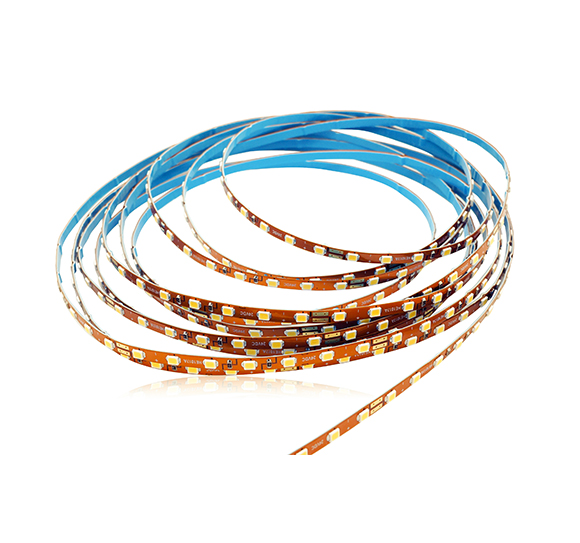

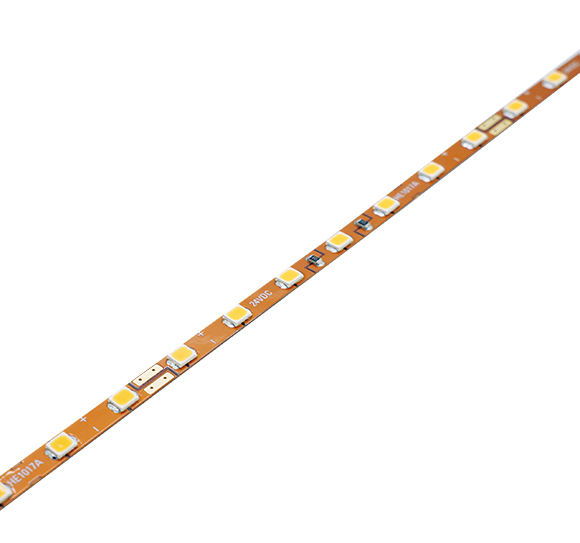

High luxury ENIG Immersion Gold LED strip 2835 84LEDs/m 3.8mm/4.5mm 24V

FEATURES

  1. Long life 50,000 hours
  2. Safe low voltage (12Vdc or 24Vdc)
  3. Ultra low power consumption, low energy efficiency
  4. Using high brightness Epistar 2835 SMD

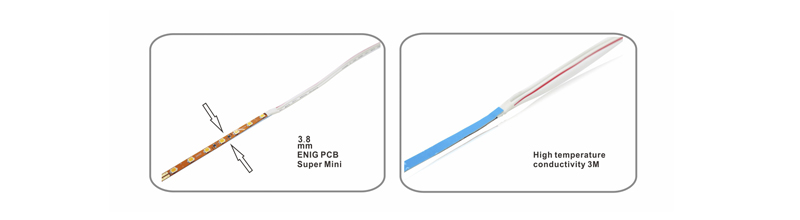

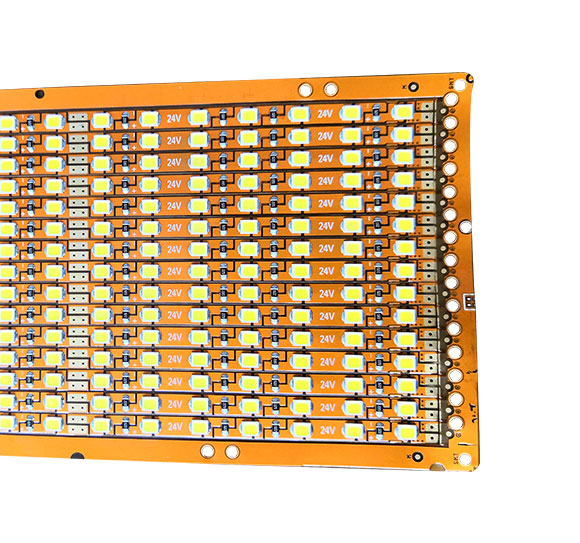

  5. ENIG Immersion Gold new technology
  6. High quality and excellent heat dissipation for luxury projects
  7. Compatible with various of aluminum profiles
  8. Full dimmable with a separate lighting dimmer
  9. Suitable for cove, office, ,hotel, retail, architectural lighting etc.
  10. 3 years warranty
  • SPECIFICATION

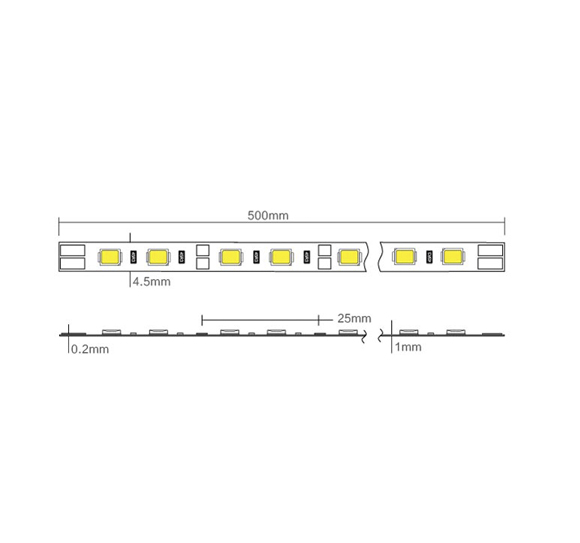

  • DIMENSION
  • DOWNLOAD
  • ACCESSORIES
PART NO.: VOLTAGE LENGTH LED QTY LED TYPE COLOR POWER LUMEN PCB WIDTH CUTTABLE UNIT CRI MAX RUN
V m Pcs/m K W lm mm mm Ra m
FL-24FS2835-84-WW-IP20 24V 5 84 2835 3000K 15W 1740 3.8/4.5 71.43 >90 5
FL-24FS2835-84-NW-IP20 24V 5 84 2835 4000K 15W 1860 3.8/4.5 71.43 >90 5
FL-24FS2835-84-W-IP20 24V 5 84 2835 6000K 15W 1920 3.8/4.5 71.43 >90 5


Datasheet

SPECTROMETER REPORT

IES

IMAGE PART NO. NAME DESCRIPTION
img200*123 ZF120-1208000 LED power supply 96W
LED adapter 96W (12V/8A, 24V4A)
img200*123 LS2 LED controller
LED controller 5-in-1 for single color, CCT, RGB, RGBW, RGBWW
img200*123 FL-P002 Aluminum profiles
FL-P002 aluminum profile, silver/white/black are available
