FL-24FS2835-240

Constant voltage standard 2835 240 LEDs/m 24V

FEATURES

  1. Long life 50,000 hours
  2. Safe low voltage (12Vdc or 24Vdc)
  3. Ultra low power consumption, low energy efficiency
  4. Using high brightness Epistar 2835 SMD LED
  5. High CRI80 or CRI90 above
  6. 120° wide view angle
  7. Compatible with various of aluminum profiles
  8. Full dimmable with a separate lighting dimmer
  9. Suitable for cove, office, ,hotel, retail, architectural lighting etc.
  10. 3 years warranty
  • SPECIFICATION

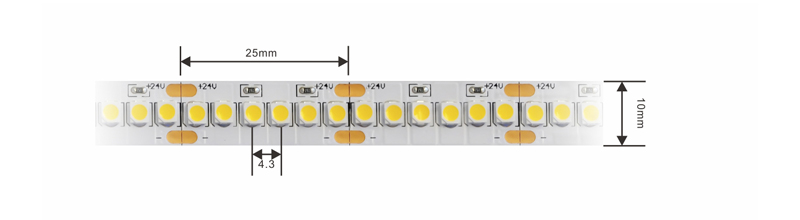

  • DIMENSION
  • DOWNLOAD
  • ACCESSORIES
PART NO.: VOLTAGE LENGTH LED QTY LED TYPE COLOR POWER LUMEN PCB WIDTH CUTTABLE UNIT CRI MAX RUN
V m Pcs/m K W lm mm mm Ra m
FL-24FS2835-240-WW-IP20 24V 5 240 2835 3000K 24W 1720 10/12 25 >80 5
FL-24FS2835-240-NW-IP20 24V 5 240 2835 4000K 24W 1880 10/12 25 >80 5
FL-24FS2835-240-W-IP20 24V 5 240 2835 6000K 24W 1920 10/12 25 >80 5


Datasheet

SPECTROMETER REPORT

IES

IMAGE PART NO. NAME DESCRIPTION
img200*123 FL-S-150 POWER SUPPLY 150W
LED power supply 150W, 12V/12.5A, 24V/6.25A, input voltage 110-240V, Nameplate Output Power 50W
img200*123 LS2 LED controller
LED controller 5-in-1 for single color, CCT, RGB, RGBW, RGBWW
img200*123 FL-P002 Aluminum profiles
FL-P002 aluminum profile suitable 8mm or 10mm LED strip, silver, white,black are availale for housing finish.
