FL-5FS102-144 (APA102)

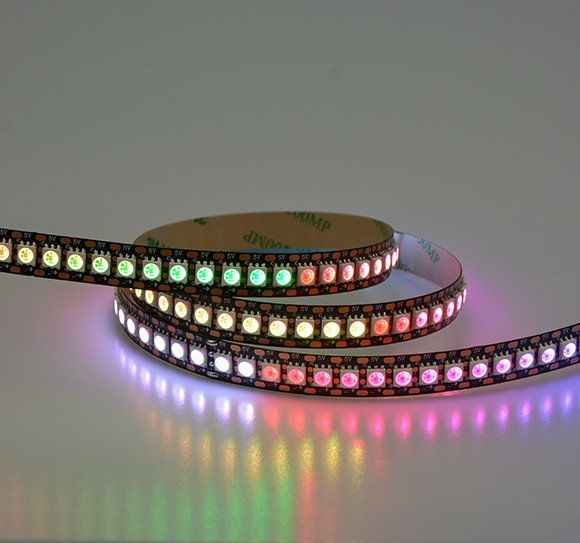

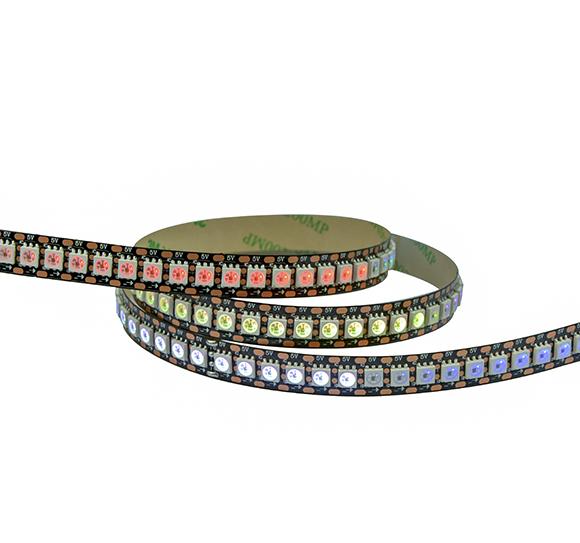

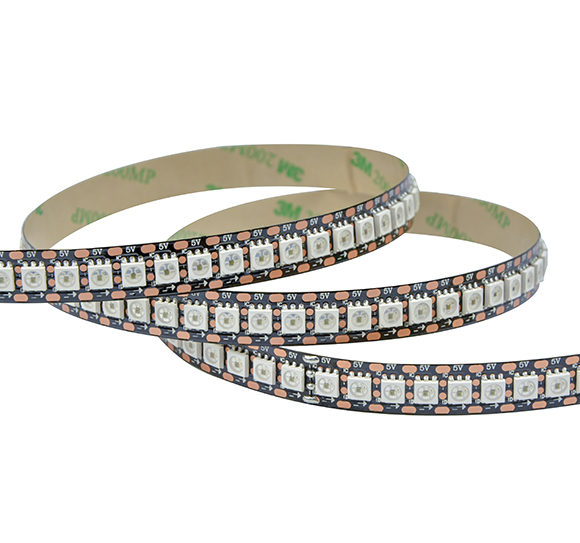

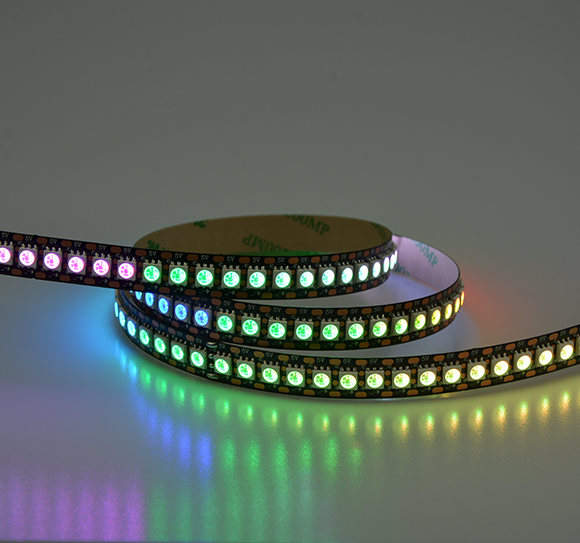

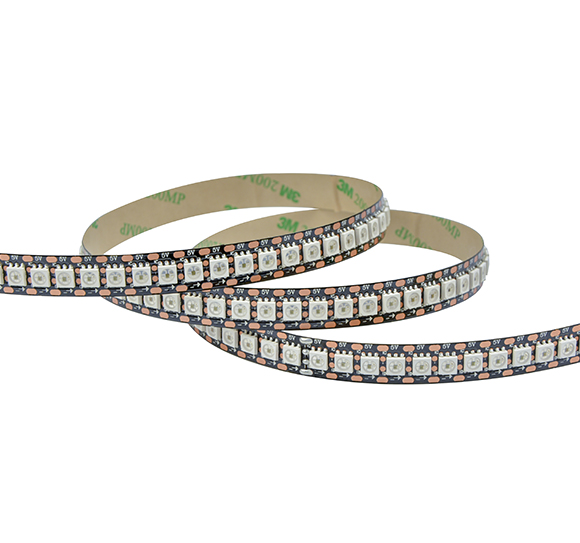

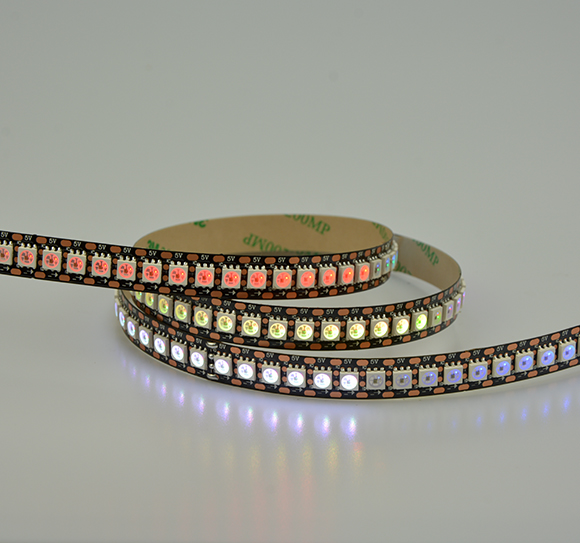

Digital pixel strip APA102 144 LEDs/m 5V

FEATURES

  1. Individually control every LED and display multiple colors on a line at the same time
  2. Give you the ability to customize more color effect Independently for every segement
  3. Allowing for more dynamic lighting effects like chase, meteor, rainbow, etc...
  4. Using APA102 built-in smart IC chip
  5. High CRI80 or CRI90 above
  6. 120° wide view angle
  7. Suitable for creating the pourlar LED strip kits and sell in Amazon, E-bay, Shopify etc...
  8. Full dimmable with a separate lighting dimmer
  9. Suitable for bar, ktv, cove, office, ,hotel, retail, architectural lighting etc.
  10. RGBIC/Addressable/digital/programmable/ws2812/ws2811/ws2813/ws2815/apa102/sk9822/sk6812,etc
  11. 3 years warranty

  • SPECIFICATION

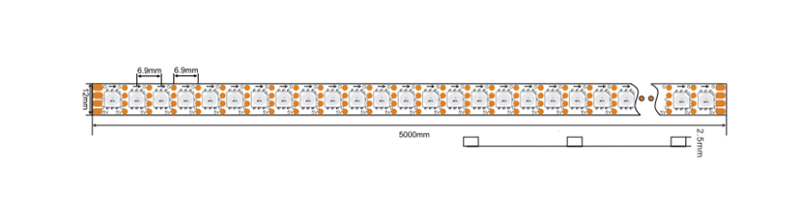

  • DIMENSION
  • DOWNLOAD
  • ACCESSORIES
PART NO.: VOLTAGE LENGTH LED QTY LED TYPE COLOR POWER LUMENF LUX PCB WIDTH CUTTABLE UNIT CRI MAX RUN
V m Pcs/m K W lm mm mm Ra m
FL-5FS102-144-WW-IP20 5V 5 144 APA102 RGB 36W / 12 8 >80 5
FL-5FS102-144-NW-IP20 5V 5 144 APA102 RGB 36W / 12 8 >80 5
FL-5FS102-144-W-IP20 5V 5 144 APA102 RGB 36W / 12 8 >80 5


DATASHEET

SPECTROMETER REPORT

IMAGE PART NO. NAME DESCRIPTION
img200*123 ZF120-1208000 LED power supply 96W
LED adapter 96W (12V/8A, 24V4A)
img200*123 LS2 LED controller
LED controller 5-in-1 for single color, CCT, RGB, RGBW, RGBWW
img200*123 FL-P002 Aluminum profiles
FL-P002 aluminum profile, silver/white/black are available
