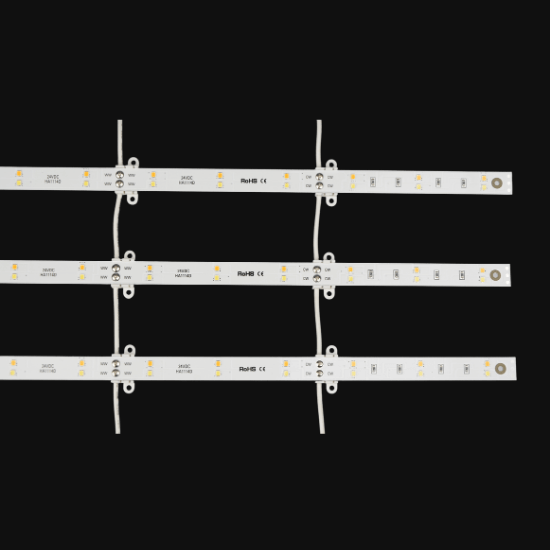

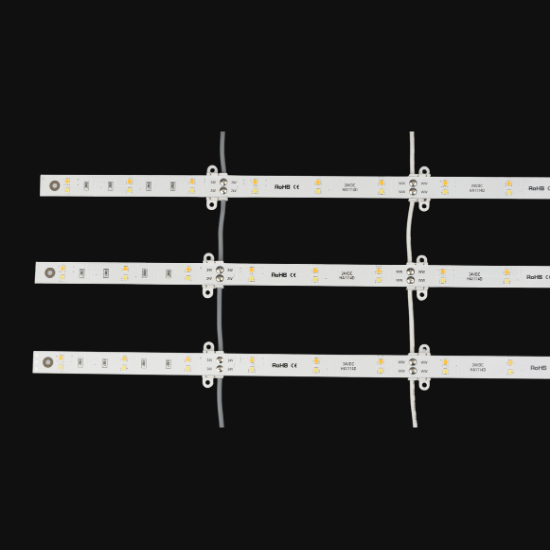

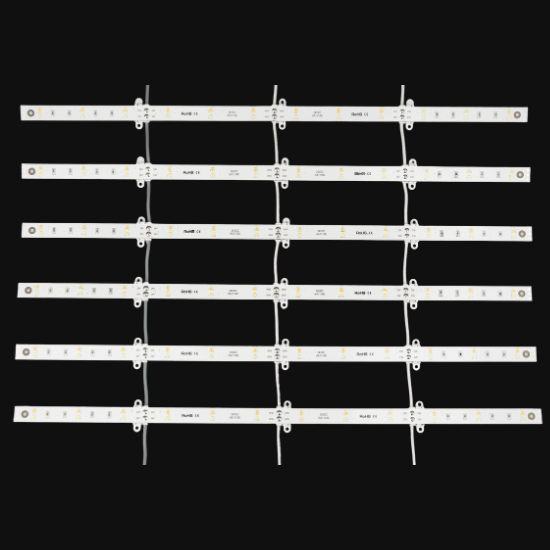

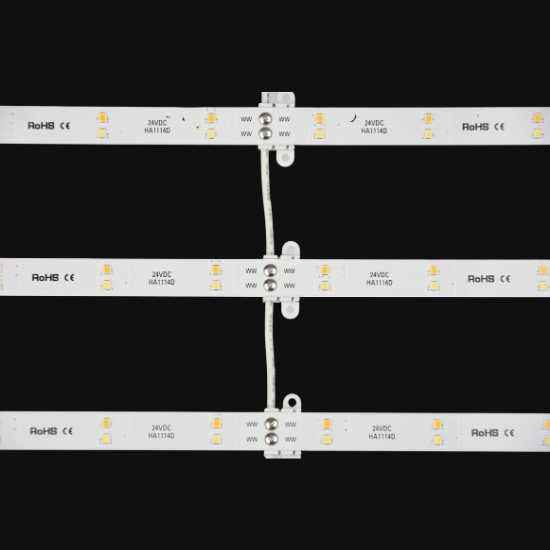

FL-12LC2835-12-W

Back-lit light bar with lens 120° for light box

FEATURES

  1. Long life 50,000 hours
  2. Safe low voltage (12Vdc or 24Vdc)
  3. Ultra low power consumption, low energy efficiency
  4. Using high bright high stability 2835 SMD LED

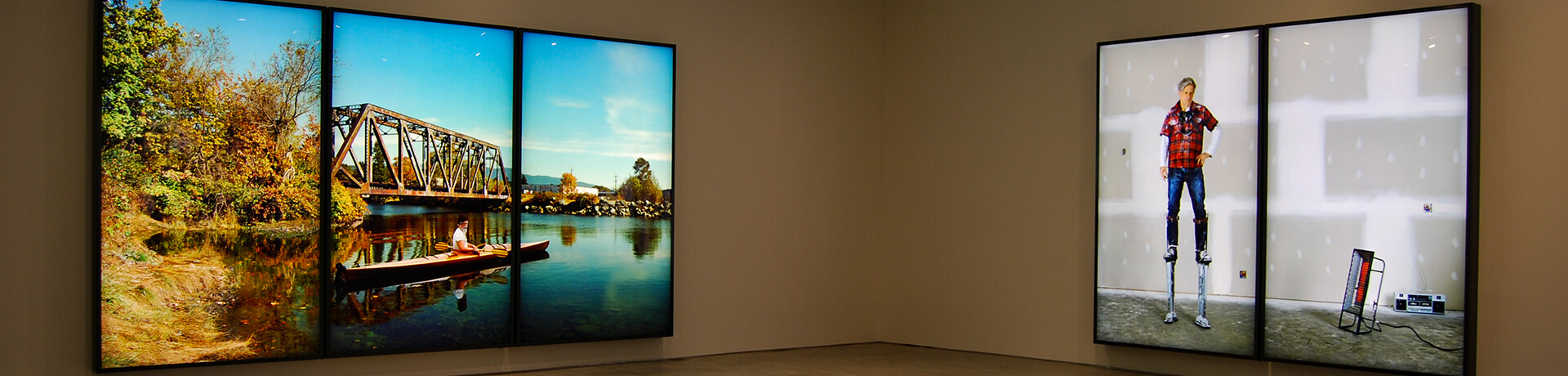

  5. Back-lit illumination, suitable for light box with a depth of 80-200mm
  6. 120° wide view angle with lens
  7. Compatible with various of middle & big light box
  8. Fast conector, plug and play
  9. High precision resistor without flickering
  10. 3 years warranty
  • SPECIFICATION

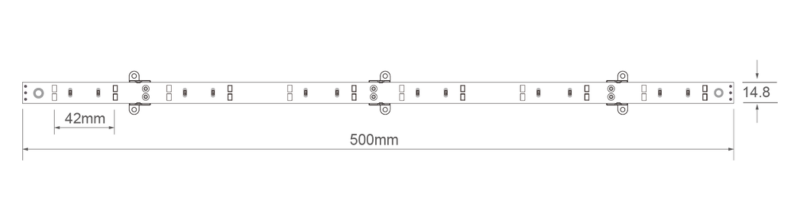

  • DIMENSION
  • DOWNLOAD
  • ACCESSORIES
PART NO.: VOLTAGE LENGTH LED QTY LED TYPE COLOR POWER LUMEN PCB WIDTH CUTTABLE UNIT CRI MAX RUN
Vdc mm Pcs/m K W lm mm mm Ra Pcs
FL-12LC2835-12 12V 500 12 2835 6000-8000 2.8W 250 10 / >80 20
FL-12LC2835-24 12V 500 24 2835 6000-8000 5.6W 500 10 / >80 20


IMAGE PART NO. NAME DESCRIPTION
img200*123 ZF120-1208000 LED power supply 96W
LED adapter 96W (12V/8A, 24V4A)
img200*123 LS2 LED controller
LED controller 5-in-1 for single color, CCT, RGB, RGBW, RGBWW
