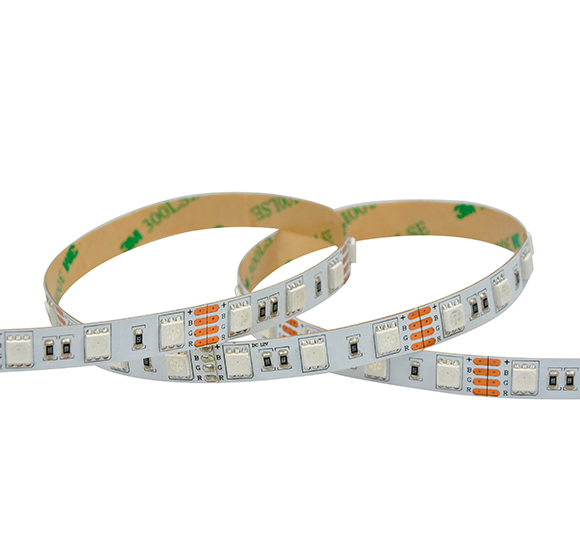

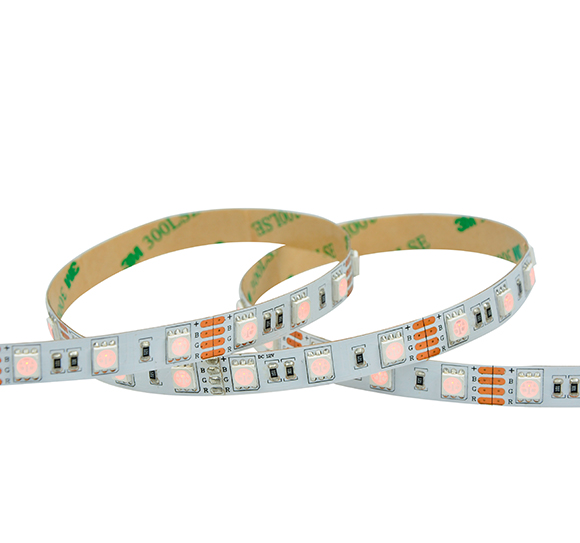

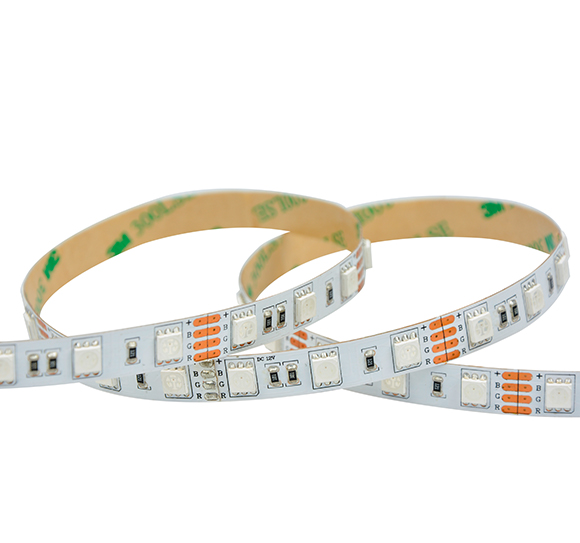

FL-12FS5050-60-RGB

RGB 5050 60 LEDs/m 12V

FEATURES

  1. Long life 50,000 hours
  2. Safe low voltage (12Vdc or 24Vdc)
  3. Ultra low power consumption, low energy efficiency
  4. Using high bright high stability Epistar LED
  5. High CRI80 or CRI90 above
  6. 120° wide view angle
  7. Compatible with various of aluminum profiles
  8. Full dimmable with a separate lighting dimmer
  9. Suitable for cove, office, ,hotel, retail, architectural lighting etc.
  10. 3 years warranty
  • SPECIFICATION

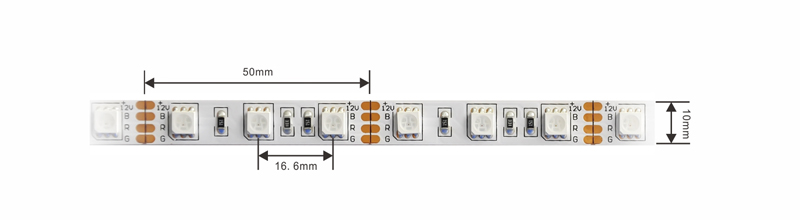

  • DIMENSION
  • DOWNLOAD
  • ACCESSORIES
PART NO.: VOLTAGE LENGTH LED QTY LED TYPE COLOR POWER LUMEN PCB WIDTH CUTTABLE UNIT CRI MAX RUN
V m Pcs/m K W lm mm mm Ra m
FL-12FS5050-60-RGB-IP20 12V 5 60 5050 RGB 14.4W / 10 50 >80 5
FL-12FS5050-60-RGB-IP20 12V 5 60 5050 RGB 14.4W / 10 50 >80 5
FL-12FS5050-60-RGB-IP20 12V 5 60 5050 RGB 14.4W / 10 50 >80 5


Datasheet

SPECTROMETER REPORT

IES

IMAGE PART NO. NAME DESCRIPTION
img200*123 ZF120-1208000 LED power supply 96W
LED adapter 96W, 12V/8A, 24V4A, input voltage 110-240V, Nameplate Output Power 50W
img200*123 LS2 LED controller
LED controller 5-in-1 for single color, CCT, RGB, RGBW, RGBWW
img200*123 FL-P002 Aluminum profiles
FL-P002 aluminum profile suitable 8mm or 10mm LED strip, silver, white,black are availale for housing finish.
