FL-CR50-C

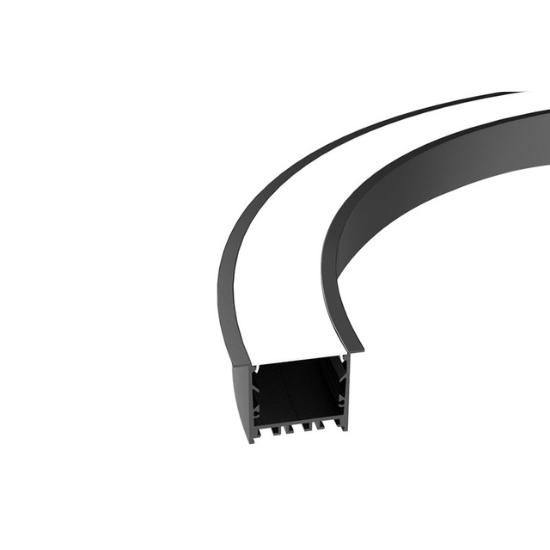

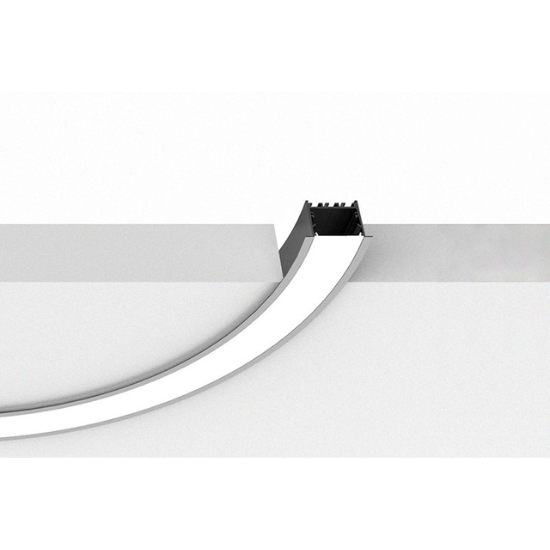

CR50-C W64mm x H45.1mm Curved Shapes Recessed LED LightLED Light

FEATURES

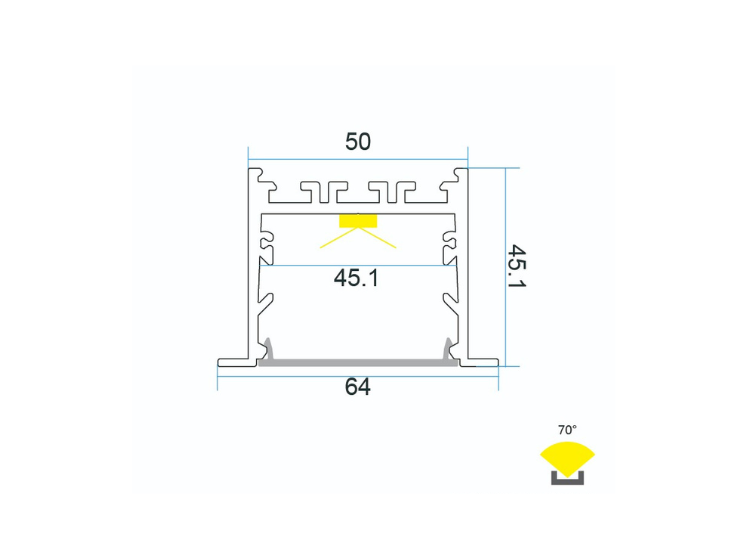

  1. Profile Dimensions W64mm x H45.1mm
  2. Base Material Non-anodized (mill finish)
  3. Colour Non-anodized/White/Black/RAL color
  4. Strips That Fit S-type flexible or Led modules
  5. Emitting Color 3000K, 4000K, RGB
  6. IP Level: IP20
  7. Customized Dimensions: Any size
  8. Diffuser: PMMA
  9. Mounting type: Recessed
  10. Warranty: 5 Years
  11. Weogt:1.4kg per meter
  12. Power Consumption:<38.4W
  13. CE ROHS UL approval


  • SPECIFICATION
  • DIMENSION
  • DOWNLOAD
  • ACCESSORIES


PART NO.: DIMENSION SIZE MATERIAL DIFFUSER MOUNTING DRIVER FINISHED CCT CRI LED STRIP ENERGY EFFICIENCY ACCESSORY
mm mm
Kelvin Ra SMD or COB A-F Kit
FL-CR50-C W64mm x H45.1mm Radius>750mm 6063 Aluminum PMMA new opal diffuser Recessed External Color Anodized/Power Coated/Spray Painting 2700K / 3000K / 3500K / 4000K
>80 >90 LED S-type strip or LED Module 70mm, 140mm, 280mm, 560mm F Connector / Suspension kit / Power supply / Ceiling Rose


DATASHEET

USER MANUAL

IMAGE PART NO. NAME DESCRIPTION
img200*123 FL-S-150 LED power supply 150W
LED power supply 150W, 12V/12.5A, 24V/6.25A, input voltage 110-240V, Nameplate Output Power 50W
